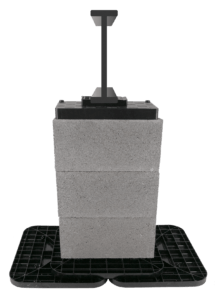

ABS multi-pier pad configuration with concrete block

ABS Pier Pads

Multi-Pier Series

ABS Multi-Pier Pad Configurations

ABS Multi-Pier Pad Configurations use three stacked oval pads to span mating-line piers and large openings, doubling the load capacity of a single pad. Three code-compliant configurations are available, spanning 32″ × 18.5″ to 35″ × 25.5″, rated to 2,000 PSF.

  • Material ABS
  • Configurations 3
  • Soil bearing 1,000–2,000 PSF
  • Max load 12,000 lbs
Order Online Get a quote →

Made in USA by Oliver Technologies. Maximum load varies by configuration and soil bearing capacity.

Ideal for heavy pier loads

Configurations & Load Ratings.

For mating-line piers and large openings, a three-pad configuration doubles the load capacity of a single pad.

  • 32″ × 18.5″

    Product #1055-23 · Three 16″ × 18.5″ pads · 4.0 sq. ft.

    1,000 PSF 4,000 lbs
    2,000 PSF 8,000 lbs

  • 34″ × 22″

    Product #1055-16 · Three 17″ × 22″ pads · 5.0 sq. ft.

    1,000 PSF 5,000 lbs
    2,000 PSF 10,000 lbs*

  • 35″ × 25.5″

    Product #1055-17 · Three 17.5″ × 25.5″ pads · 6.0 sq. ft.

    1,000 PSF 6,000 lbs
    2,000 PSF 12,000 lbs*

* Concrete blocks are only rated at 8,000 pounds. 8,001 pounds or more must be double stacked.

Installation

Installation Instructions.

Reference the written installation instructions as the authoritative source for ABS pad setup and multi-pad configurations.

PDF · Authoritative

ABS Pads Installation Instructions

Step-by-step installation guide for Oliver ABS pier pads, including multi-pad placement, leveling, and code-compliant setup.

Download PDF

Need sizing or load specs?

Call Oliver Technologies for soil and load guidance, pricing, or help choosing the right multi-pier configuration.

1-800-284-7437 Mon–Fri, 8 AM to 5 PM CST
