Shed and Storm Shelter Anchors

Shed and Storm Shelter Anchors use a double-helix design to resist vertical uplift and lateral movement, securing sheds, storm shelters, and outbuildings. Available in 30" and 36" heights, with or without cap, in painted and welded finishes. Sidewall brackets and hardware also available.

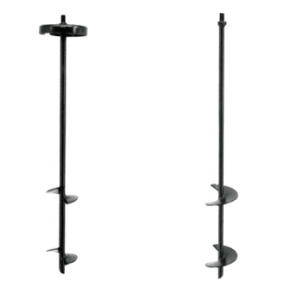

Double Helix Storm Shelter Anchor (Cap & No-Cap)


      Product #
      Height
      Width
      Barb
      Barb Width
      Type



      OT3044APMP (No Cap)
      30"
      5/8"
      2
      4"
      Painted


      OT3644APMP (No Cap)
      36"
      5/8"
      2
      4"
      Painted


      OT3044BPCMP (Cap)
      30"
      3/4"
      2
      4"
      Welded & Painted


      OT3646BPCMP (Cap)
      36"
      3/4"
      2
      4" & 6"
      Welded & Painted


Installation Instructions

ANCHOR COMPONENTS INSTRUCTIONS

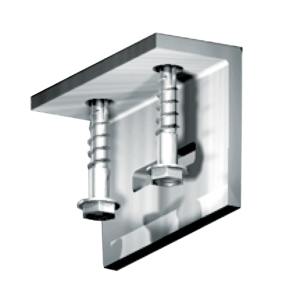

Sidewall Bracket

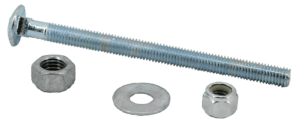

Carriage Bolt Bag


      Product #
      Description

      OTSWBL-17 (BRACKET)
      17" Sidewall Bracket

      OTSWBL-24 (BRACKET)
      24" Sidewall Bracket

      BB MPA7 (BOLT BAG)
      7" Carriage Bolt, Flat Washer, Locking Nut, Hex Nut
