Perimeter Pier Options
There are several door/window and perimeter pier support options. Typically perimeter supports utilize footing that are installed at or below frost depth. Oliver Technologies offers a few alternative perimeter support options that are not affected by frost heave, making your perimeter support installations fast and easy.
![adjustable outriggers](https://olivertechnologies.com/wp-content/uploads/2021/02/adjustable-outriggers-32123.png)

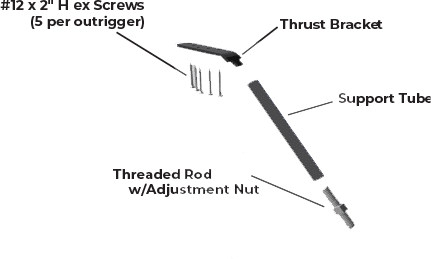

Adjustable Outrigger
|
|
---|---|
OR-14 (14' Wide) | 18" |
OR-16 (16' Wide) | 30" |
1055-11 14 Ea | 24" |
1055-11 16 Ea | 36" |
Installation Instructions
Installation Videos
![OTPP36 Diagram](https://olivertechnologies.com/wp-content/uploads/2021/02/OTPP36-Diagram-1.png)
EZ Pier
|
|
---|---|
OTPP36 | EZ Pier w/ Standard Head |
ST-HD | EZ Pier Head |
Installation Instructions
![sideline support](https://olivertechnologies.com/wp-content/uploads/2021/02/sideline-support-1.png)
Sideline Support
|
|
---|---|
OTIS3 | Used for difficult soils with max pier load of 4,800 lbs |
Installation Instructions
![anchor piers](https://olivertechnologies.com/wp-content/uploads/2021/02/anchor-piers-1.jpg)

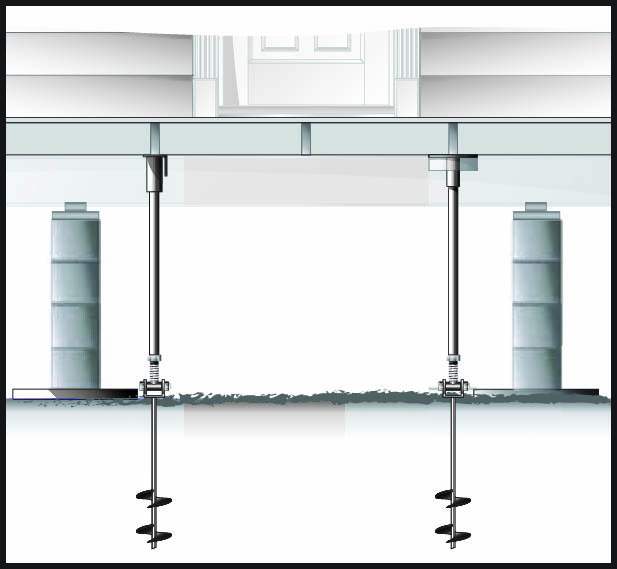

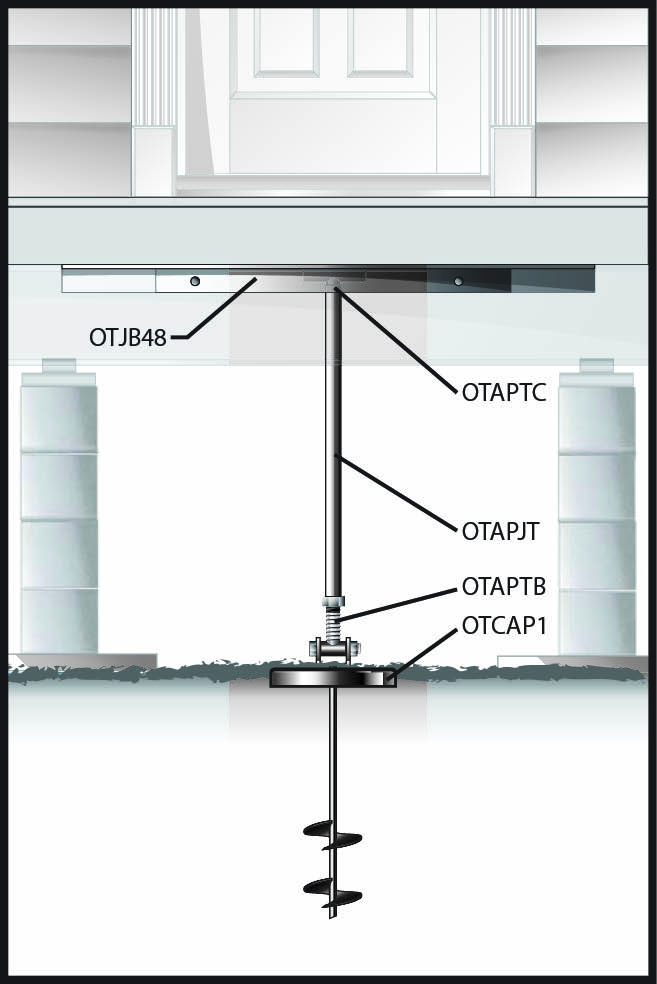

Anchor Piers
![anchor piers](https://olivertechnologies.com/wp-content/uploads/2021/02/anchor-piers-2.jpg)
![anchor piers](https://olivertechnologies.com/wp-content/uploads/2021/02/anchor-piers-3.jpg)
|
|
---|---|
OTAP12K | Painted |
|
|
---|---|

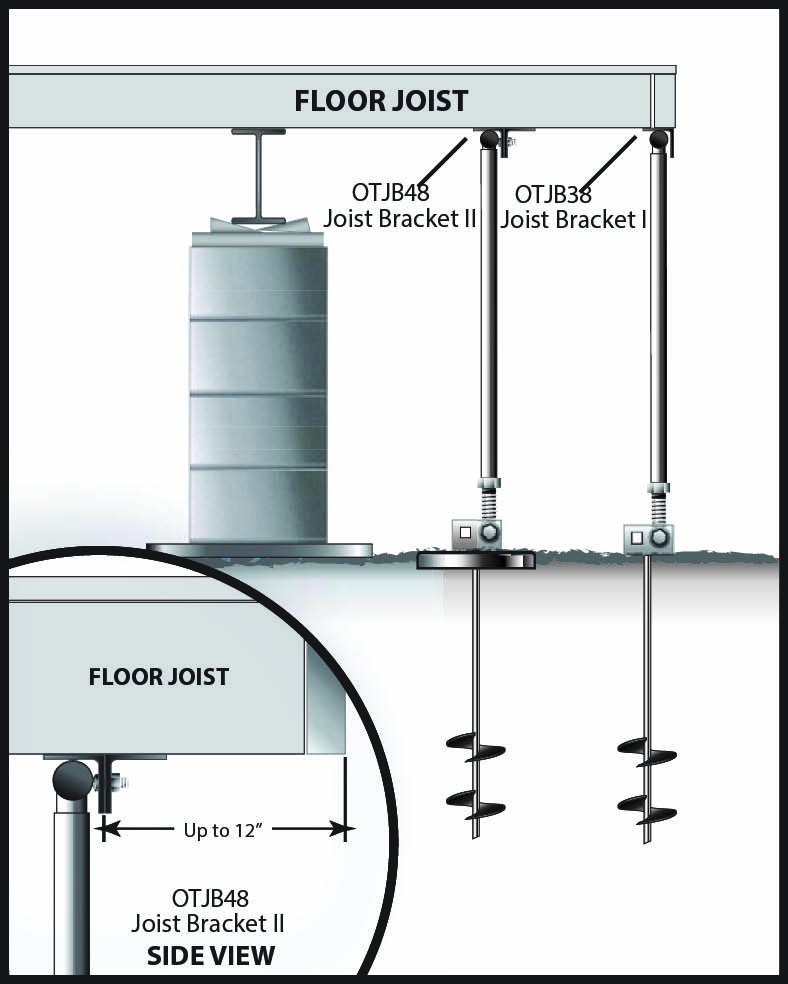

Anchor Pier Joist Bracket, 1.5" x 1.5" x 4" Angle Iron | OTAPJB12 |
Anchor Pier Joist Bracket, 1.5" x 1.5" x 38" Angle Iron | OTAPJB38 |
Anchor Pier Joist Bracket, 1.5" x 1.5" x 48" Angle Iron | OTAPJB48 |
P = Painted G = Galvanized
|
|
---|---|
Concrete | OTCAD or G |
2 | OT2444B P or G |
3 | OT3044B P or G |
4A | OT3646 P or G |
3 | OT4844 P or G |
4A | OT486B P or G |
Installation Instructions
