Prefabricated steps for manufactured homes installed in front of home entry Wood / Metal · Patented Design

Prefabricated Steps

Step Solutions for manufactured homes.

Premium and Standard wood/metal step systems designed for fast assembly. Premium models are documented for compliance with the 2018 IRC Code when configured and installed as specified. Available in multiple heights, platform depths, and handrail configurations.

  • 10–15 min typical assembly
  • 50 lb/ft² Premium tested load
  • 2018 IRC code compliant (Premium)
  • Patent US 11,643,815 B2
Contact for pricing Call 1-800-284-7437

Choose your line

Premium or Standard.

Two step lines for different needs. Premium models include closed risers and documented 2018 IRC criteria. Standard models are a cost-conscious option for basic or temporary access.

  • Premium

    Closed risers, deeper treads

    Closed risers, deeper treads, included handrail packages.

    • Width42″
    • Tread depth10.25″
    • Step rise7.5″
    • RisersClosed
    • Heights22″, 30″, 38″
    • Load50 lb/ft² tested
    • Code2018 IRC criteria documented
    • HandrailsTwo side rails included

    Designed for manufactured-home entries where the selected configuration is accepted by the authority having jurisdiction.

  • Standard

    Open risers, cost-conscious

    Basic step system for cost-conscious customers.

    • Width40″
    • Tread depth9.25″
    • Step rise8″
    • RisersOpen
    • Heights24″, 32″, 40″
    • Load capacityContact for spec
    • CodeVerify with local AHJ
    • HandrailsSold separately

    Basic step system for cost-conscious customers needing simple access to the home. Handrails sold separately.

Note

OTI Premium Steps are prefabricated and independently documented for specified criteria. Final approval depends on the selected configuration, site conditions, applicable code edition, and the authority having jurisdiction. Additional documentation is available where required.

Model directory

All step models.

Eighteen part numbers across both lines. Filter by line and height. All dimensions are nominal — verify against installation drawings before ordering.

Line
Height
Model Line Height Treads Length Platform Side Rail Part

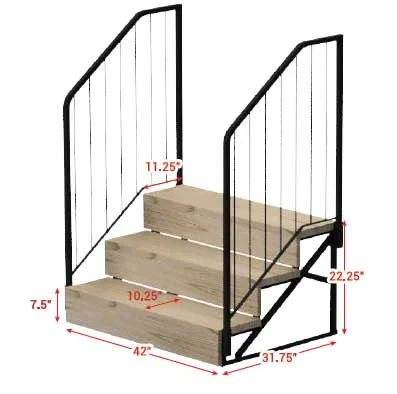

WM221242 Premium 22.25″ 3 31.75″ 11.25″ WM-PSR-221242
WM222442 Premium 22.25″ 3 43″ 22.5″ WM-PSR-2224

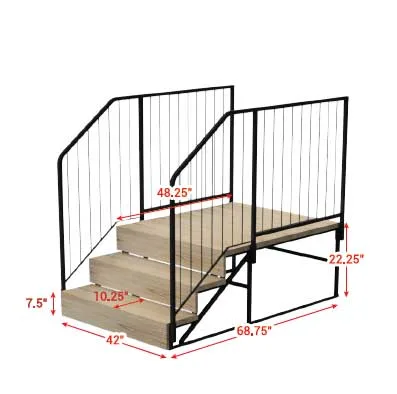

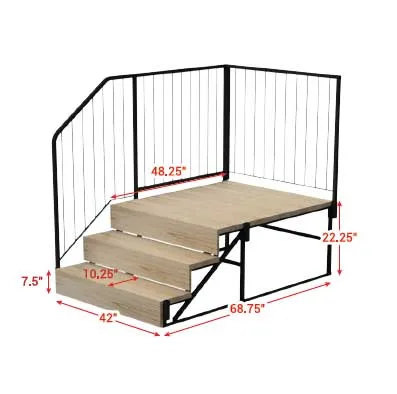

WM224042 Premium 22.25″ 3 68.75″ 48.25″ WM-PSR-2240
+ optional back rail WM-PBR-42

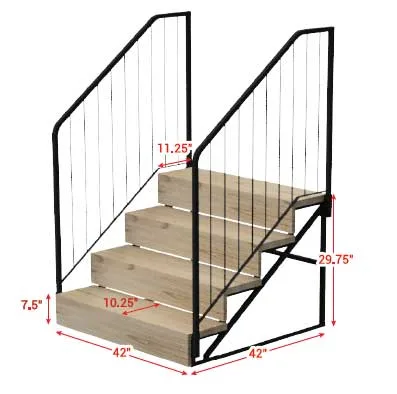

WM301242 Premium 29.75″ 4 42″ 11.25″ WM-PSR-3012

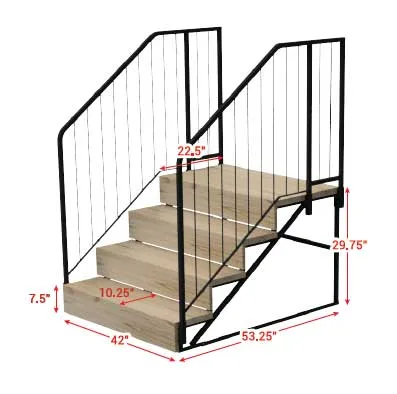

WM302442 Premium 29.75″ 4 53.25″ 22.5″ WM-PSR-3024

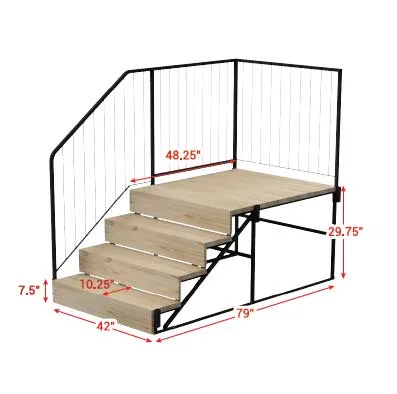

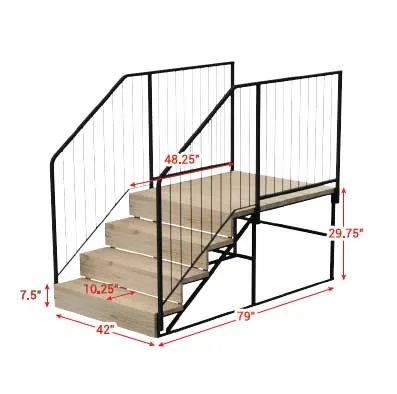

WM304042 Premium 29.75″ 4 79″ 48.25″ WM-PSR-3040
+ optional back rail WM-PBR-42

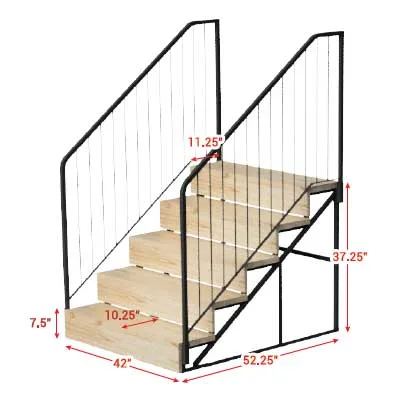

WM381242 Premium 39.25″ 5 52.25″ 11.25″ WM-PSR-3812

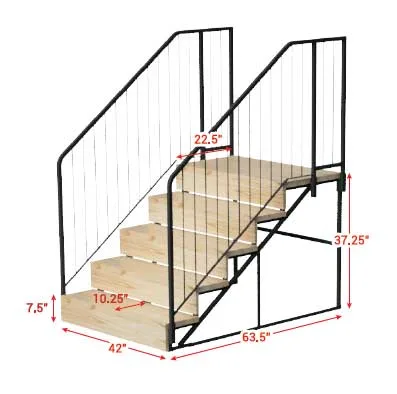

WM382442 Premium 37.25″ 5 63.5″ 22.5″ WM-PSR-3824

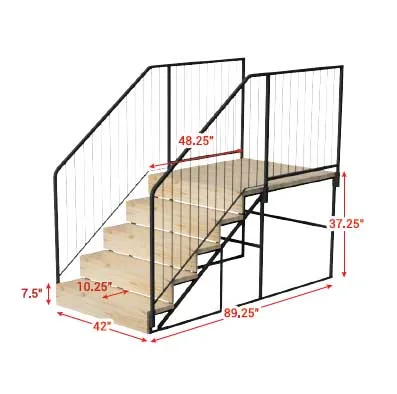

WM384042 Premium 37.25″ 5 89.25″ 48.25″ WM-PSR-3840
+ optional back rail WM-PBR-42

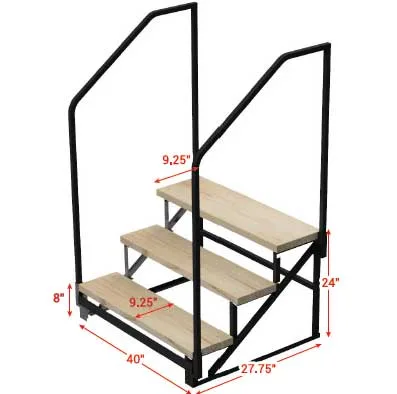

WM241040 Standard 24″ 3 27″ 9.25″ WM-SSR-2410

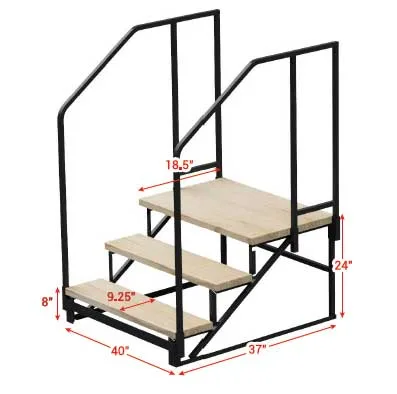

WM242040 Standard 24″ 3 37″ 18.5″ WM-SSR-2420 / WM-PSR-2420

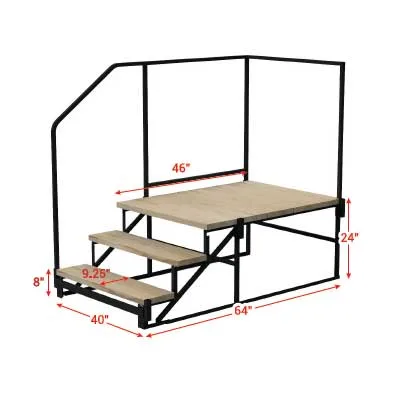

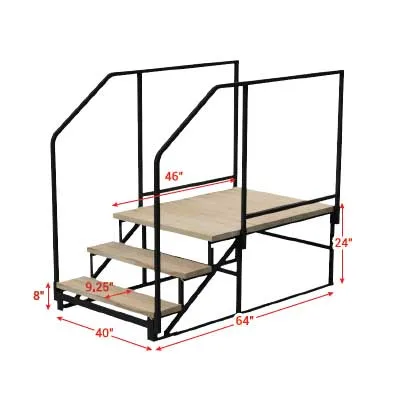

WM243840 Standard 24″ 3 64″ 46″ WM-SSR-2438 / WM-PSR-2438
+ optional back rail WM-SBR-36 or WM-PBR-40

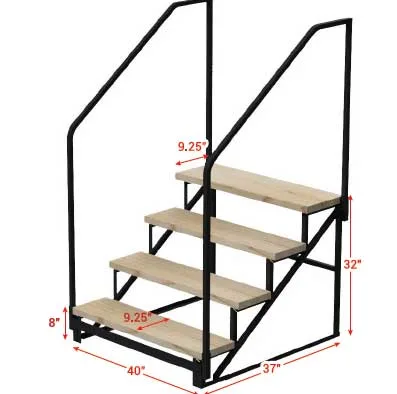

WM321040 Standard 32″ 4 37″ 9.25″ WM-SSR-3210

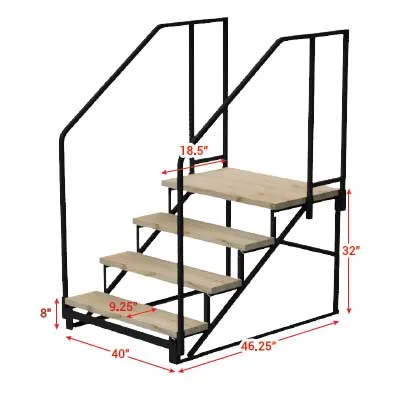

WM322040 Standard 32″ 4 46.25″ 18.5″ WM-SSR-3220 / WM-PSR-3220

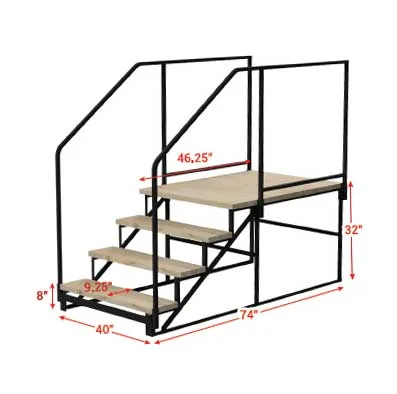

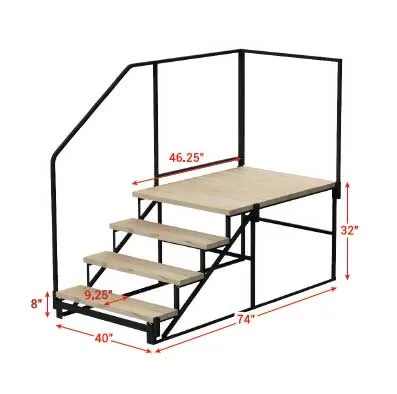

WM323840 Standard 32″ 4 74″ 46.25″ WM-SSR-3238 / WM-PSR-3238
+ optional back rail WM-SBR-36 or WM-PBR-40

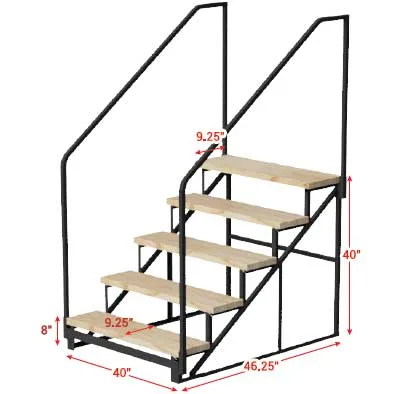

WM401040 Standard 40″ 5 46.25″ 9.25″ WM-SSR-4010

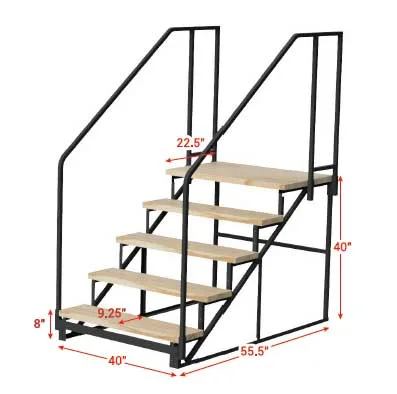

WM402040 Standard 40″ 5 55.5″ 18.5″ WM-SSR-4020 / WM-PSR-4020

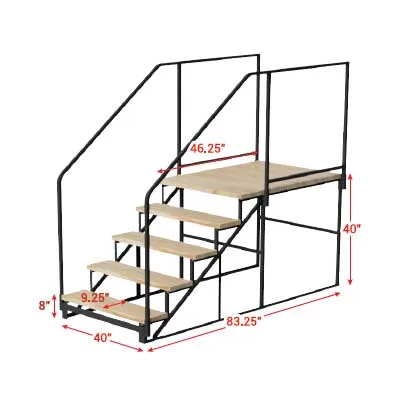

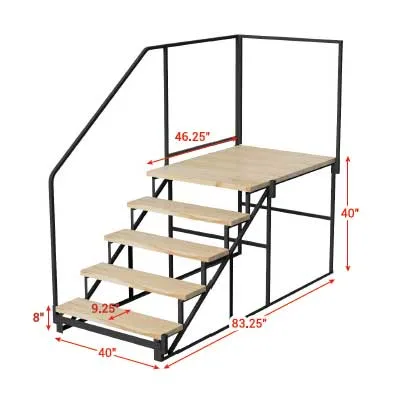

WM403840 Standard 40″ 5 83″ 46″ WM-SSR-4038 / WM-PSR-4038
+ optional back rail WM-SBR-36 or WM-PBR-40

Rail configurations

Rail options.

Available handrail combinations for both Standard and Premium step lines. Premium steps ship with two side rails included. Standard rails are sold separately.

Standard

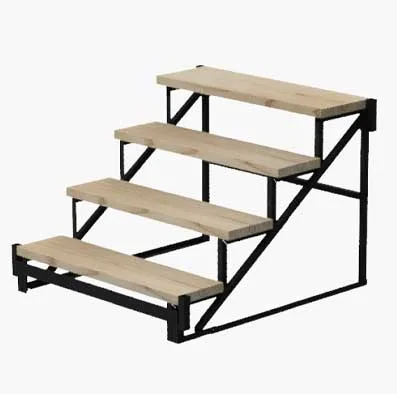

  • Standard steps without handrails
    No handrails

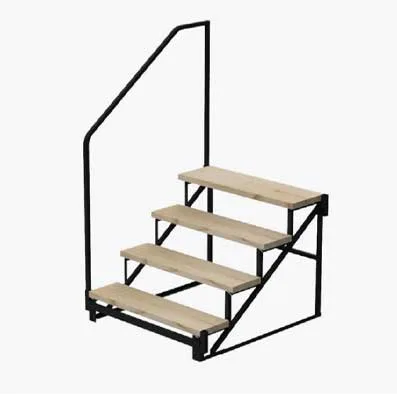

  • Standard steps with single standard rail
    Single Standard rail
  • Standard steps with dual standard rails
    Dual Standard rails

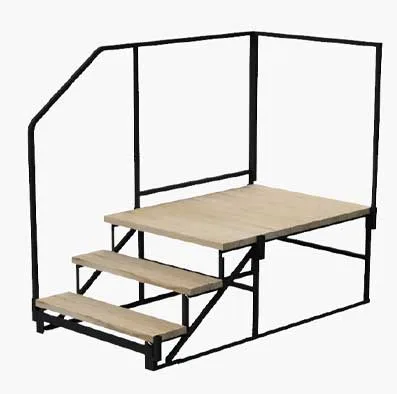

  • Standard steps with standard back rail and handrail
    Back rail + Handrail

Premium

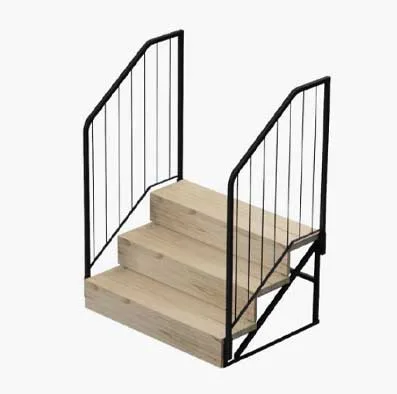

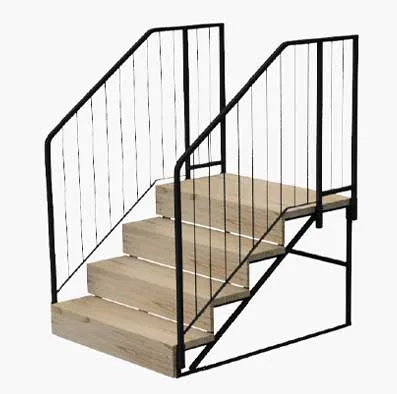

  • Premium steps with dual premium rail
    Dual Premium rails
  • Premium steps with dual premium rails — alternate configuration
    Dual Premium rails (alt)

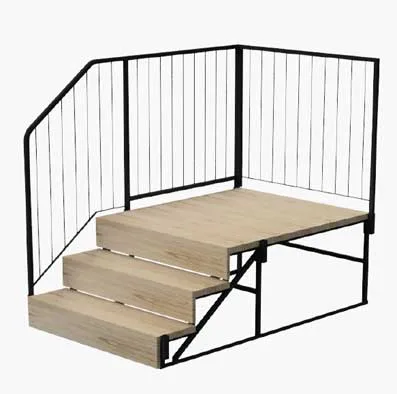

  • Premium steps with premium back rail and handrail
    Back rail + Handrail

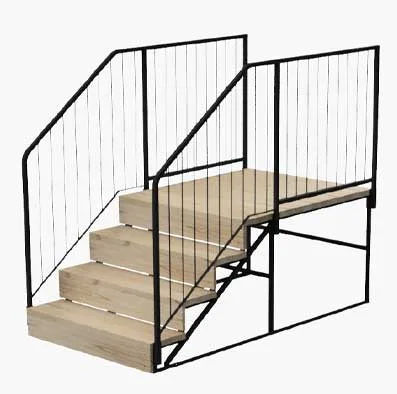

  • Premium steps with dual premium rails and platform
    Platform + Dual rails

Once installed, selected Standard and Premium step configurations can be enclosed with vinyl skirting or custom materials (not included) to match the home.

Installation

Assembly walkthroughs.

Three reference videos covering step assembly and platform configurations. Videos are visual references only; use the included written installation instructions and applicable local requirements for installation.

  • Standard install

    Wood / Metal Step with Rail

  • Platform install

    Wood / Metal Platform Step with Rail

  • Premium install

    Premium Step Assembly

Need installation support?

Call Oliver Technologies for compatibility questions, additional engineered documentation, or pricing.

1-800-284-7437 Mon–Fri, 8 AM to 5 PM CST

FAQs

Step questions, answered.

Common questions about assembly, tested load, documented IRC criteria, and installation. For installation-specific guidance, call 1-800-284-7437.

How long do steps take to assemble?

Typically, they can be assembled in 10–15 minutes.

What is the load capacity of the Premium steps?

Premium steps have been evaluated and tested to 50 lbs per square foot for specified 2018 IRC criteria. Documentation is available upon request.

What is the largest platform size?

We offer a 38″ platform for each step height. When combined with the step, the usable platform is 42″ × 48″.

Are the steps required to be anchored to the ground?

This will be determined by the local authority having jurisdiction where the steps are installed.

What size treads are on the steps?

Our Standard steps have 9.25″ treads. Our Premium steps have 10.25″ treads.

Do the steps meet my local building codes?

Premium steps have documentation for specified 2018 IRC criteria. Final approval depends on the selected configuration, installation conditions, applicable local code edition, and the authority having jurisdiction.
