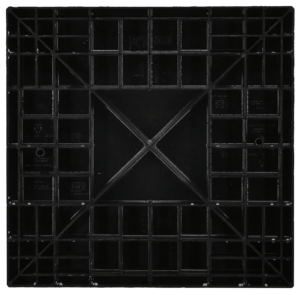

16″ × 16″
1,000 PSF
1,780 lbs**
2,000 PSF
3,560 lbs**
3,000 PSF
5,340 lbs
ABS Pier Pads
Square Series

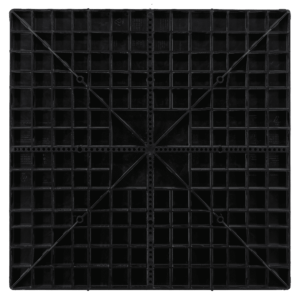

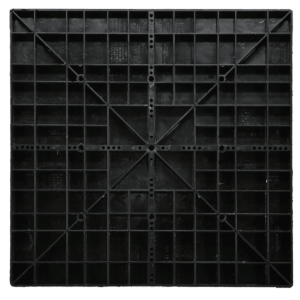

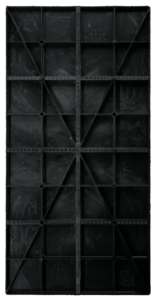

ABS Square Pier Pads
ABS Square Pier Pads are a lightweight, frost-resistant alternative to concrete pads for manufactured and mobile home foundation setups, compatible with both steel pier and concrete block installations.
- Material ABS
- Sizes 2 sizes
- Soil bearing 1,000–3,000 PSF
- Piers Steel & block
Made in USA by Oliver Technologies. Maximum load varies by pad size and soil bearing capacity.
Steel & concrete block piers
Available sizes & load ratings.
Choose a pad size based on your soil and load requirements. Maximum load scales with pad area and the soil bearing capacity at the site.
-
-
24″ × 24″
1,000 PSF 4,000 lbs2,000 PSF 8,000 lbs3,000 PSF 12,000 lbs*
* Higher load capacities may require double concrete blocks or additional setup per local codes and Oliver installation guidelines.
** Indicates the capacities at which steel piers can be used.
Installation
Instructions & videos.
Use the written installation instructions with RAD-1373 and applicable installation requirements. The walkthrough video is a visual reference only.
PDF · Written Instructions
ABS Pads Installation Instructions
Step-by-step installation guide for Oliver ABS pier pads, including placement, leveling, and setup.
Video · Reference only
Installation Walkthrough
Visual walkthrough of ABS pad placement and setup. Not a substitute for the written installation instructions.
Need sizing or load specs?
Call Oliver Technologies for soil and load guidance, pricing, or the full spec sheet by pad size.
1-800-284-7437
Mon–Fri, 8 AM to 5 PM CST
