Frame Ties, Quick Connectors, Split Bolts & Straps
When securing a home, there are several areas that need to be tied down to make the home safe. Now that you have chosen the proper anchors and stabilizing devices, you will need to determine the attachment connectors on the frame or side wall, as well as longitudinal protection and the proper strap lengths. We have several options for you to choose from.
I-Beam Connectors

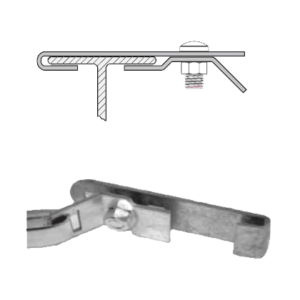

Swivel Frame Tie

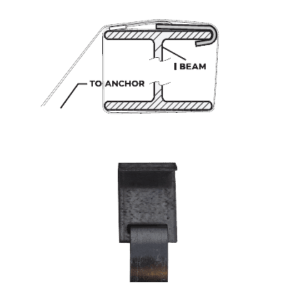

"J" Hook Frame Tie

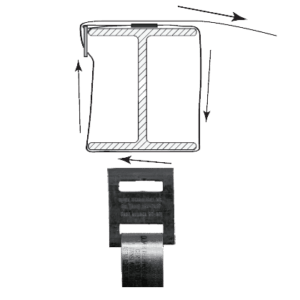

Buckle Frame Tie
| OTST1 | Double Slotted Buckles |
| OTSFT N/B BB | 1/2" x 1" Bolt w/ Nut - Galvanized |
| OT SC2-10* | Swivel Frame Tie (Top Clamp) w/ 10' Strap |
| OT SC2-7* | Swivel Frame Tie (Top Clamp) w/ 7' Strap |
| OT SC2-5* | Swivel Frame Tie (Top Clamp) w/ 5' Strap |
| OTFT1-12 | "J" Hook Frame Tie w/ 12' Strap |
| OTFT1-10 | "J" Hook Frame Tie w/ 10' Strap |
| OTFT1-8 | "J" Hook Frame Tie w/ 8' Strap |
| OTFT1-6 | "J" Hook Frame Tie w/ 6' Strap |
| OTST1-12 | Buckle Frame Tie w/ 12' Strap |
| OTST1-10 | Buckle Frame Tie w/ 10' Strap |
| OTST1-8 | Buckle Frame Tie w/ 8' Strap |
| OTST1-6 | Buckle Frame Tie w/ 6' Strap |
* Additional strap lengths available *G60 or G120 available
Installation Instructions
Longitudinal Connectors
When homes are equipped with pre-installed sidewall and/or longitudinal brackets, you have a couple of choices.

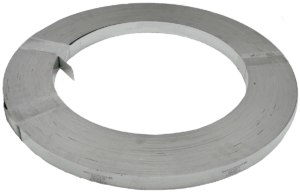

Galvanized Strapping

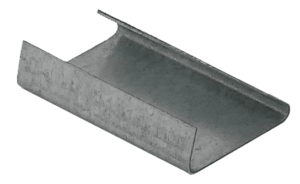

Crimp Seal

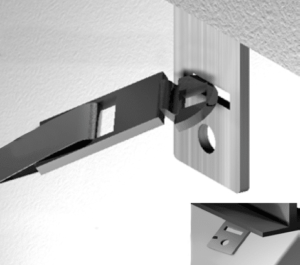

Quick Connector w/ Strap
| OTSFT N/B BB | 1/2” x 1" Bolt w/ Nut - Galvanized, Grade 5 |
| OTCRIMPSEAL | Crimp Seal - Semi Closed |
| OTGAL600G60 * | 600’ Roll Strapping |
| OTGAL37G60 * | 37’ Roll Strapping |
| OT SQ 6 (LG) OT-SQ2 6 (SML) | Quick Connector w/ 6’ Strap G60 |
| OT SQ 5 (LG) OT-SQ2 5 (SML) | Quick Connector w/ 5’ Strap G60 |
| OT QC-6 (LG) OT QC6 (SML) | Quick Connector w/ 6’ Strap G120 |
| OT QC-5 (LG) OT QC5 (SML) | Quick Connector w/ 5’ Strap G120 |
| OTQCU-6 * | Universal Quick Connector w/ 6’ Strap G60 |
| OTQCU-5 * | Universal Quick Connector w/ 5’ Strap G60 |
Installation Instructions

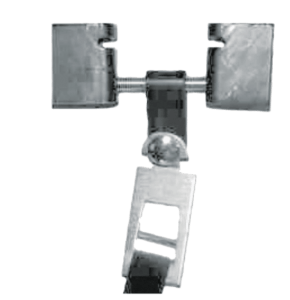

Longitudinal I-Beam Connectors
Longitudinal I-Beam Connectors
(Quick Strap Sold Seperate)
| OTLTK | Longitudinal I-Beam Connector |
| OTSWB | Sidewall Bracket |
Installation Instructions

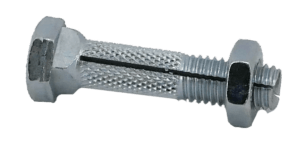

Galvanized Split Bolt
Split Bolt (Galvanized)
| OT S/B | 5/8” x 3” x 5/8” Square Shoulder with Hexagon Head |
Installation Instructions
