All Steel Foundation Systems 1102 SOLO Systems (Dirt)
Dirt Application (Pan)
An innovative alternative to conventional anchors is our All Steel Foundation Systems (ASFS). These systems eliminate the need for most anchors in Wind Zone 1. In Wind Zones 2 & 3, ASFS eliminates the need for diagonal frame ties, stabilizer plates and anchors required for longitudinal protection. ASFS can be used in all soil classes up to 4B. All Steel Foundation Systems are available with or without a pier support.

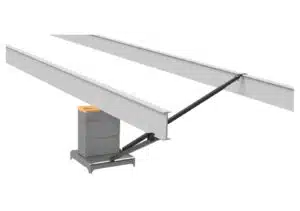

ASFS Model 1102 IV (Dirt) Series
| 12" - 24" | 39" |
| 12" - 32" | 44" |
| 12" - 40" | 54" |
| 12" - 48" | 65" |
Angle of longitudinal arms must be between 15˚
and 45˚
Installation Instructions
Installation Videos
*ASFS installation videos are only for representation of our product. They are not meant to be a substituted for the written installation instructions.
| 1102 SOLO ITV | Lateral Protection Only | Painted |
| 1102 SOLO ITVG | Lateral Protection Only | Galvanized G60 |
| 1102 SOLO PAN-39 | Longitudinal & Lateral Protection | 39" Painted Arms |
| 1102 SOLO PAN-39G | Longitudinal & Lateral Protection | 39" Galvanized Arms |
| 1102 SOLO PAN-44 | Longitudinal & Lateral Protection | 44" Painted Arms |
| 1102 SOLO PAN-44G | Longitudinal & Lateral Protection | 44" Galvanized Arms |
| 1102 SOLO PAN-54 | Longitudinal & Lateral Protection | 54" Painted Arms |
| 1102 SOLO PAN-54G | Longitudinal & Lateral Protection | 54" Galvanized Arms |
| 1102 SOLO PAN-65 | Longitudinal & Lateral Protection | 65" Painted Arms |
| 1102 SOLO PAN-65G | Longitudinal & Lateral Protection | 65" Galvanized Arms |
* Florida requires a G120 Galvanized Pan. Ask for part #1101V with 20" to 54" arms available.
