ABS Oval Pier Pads

Ideal For Concrete Block Piers

*Concrete blocks are only rated at 8,000 pounds. 8,001 pounds or more must be double stacked.

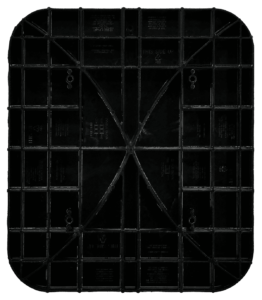

Oval ABS Pier Pad 16" x 18.5"

wdt_ID	Product #	Size	Pad Area	PSF Soil
3	1055-23	16" x 18.5"	288 sq. in.	1,000 = 2,000 lbs. 2,000 = 4,000 lbs. 3000 = 6,000 lbs.

Installation Instructions

Installation Videos

ABS PADS INSTRUCTIONS

*Available for Multi-Pad Configurations

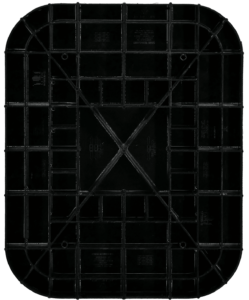

Oval ABS Pier Pad 17" x 22"

wdt_ID	Product #	Size	Pad Area	PSF Soil
3	1055-16	17" x 22"	360 sq. in.	1,000 = 2,500 lbs. 2,000 = 5,000 lbs. 3000 = 7,500 lbs.

Installation Instructions

Installation Videos

ABS PADS INSTRUCTIONS

*Available for Multi-Pad Configurations

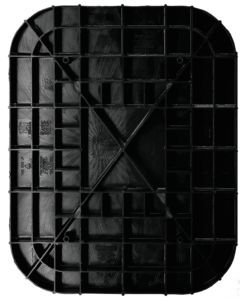

Oval ABS Pier Pad 17.5" x 22.5"

wdt_ID	Product #	Size	Pad Area	PSF Soil
3	1055-21	17.5" x 22.5"	384 sq. in.	1,000 = 2,667 lbs. 2,000 = 5,334 lbs. 3000 = 8,000 lbs.

Installation Instructions

Installation Videos

ABS PADS INSTRUCTIONS

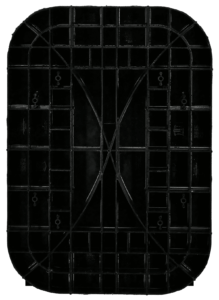

Oval ABS Pier Pad 17.5" x 25.5"

wdt_ID	Product #	Size	Pad Area	PSF Soil
3	1055-17	17.5" x 25.5"	432 sq. in.	1,000 = 3,000 lbs. 2,000 = 6,000 lbs. 3000 = 9,000 lbs.

Installation Instructions

Installation Videos

ABS PADS INSTRUCTIONS

*Available for Multi-Pad Configurations

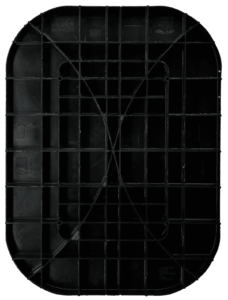

Oval ABS Pier Pad 21" x 29"

wdt_ID	Product #	Size	Pad Area	PSF Soil
3	1055-22	21" x 29"	576 sq. in.	1,000 = 4,000 lbs. 2,000 = 8,000 lbs. 3000 = 12,000 lbs.

Installation Instructions

Installation Videos

ABS PADS INSTRUCTIONS

Oval ABS Pier Pad 23.25" x 31.25"

wdt_ID	Product #	Size	Pad Area	PSF Soil
3	1055-20	23.25" x 31.25"	675 sq. in.	1,000 = 4,688 lbs. 2,000 = 9,376 lbs. 3000 = 14,064 lbs.

Installation Instructions

Installation Videos

ABS PADS INSTRUCTIONS
